Project Structure

A SIERRA project is a directory that SIERRA discovers via SIERRA_PLUGIN_PATH. This page describes the expected layout of that directory and the role of each file. For instructions on creating a project from scratch, see Creating a New SIERRA Project.

Directory Layout

A complete project looks like this:

myproject/
├── .sierraplugin          # magic cookie — marks this as a project plugin
├── __init__.py
├── cmdline.py             # required: defines --controller and --scenario
├── config/
│   ├── main.yaml          # required: core SIERRA configuration
│   ├── controllers.yaml   # required: controller graph/template config
│   ├── graphs.yaml        # optional: graph generation targets
│   ├── collate.yaml       # optional: data collation targets
│   └── models.yaml        # optional: analytical model configuration
├── generators/
│   ├── scenario.py        # required: parses --scenario, generates template changes
│   └── experiment.py      # optional: per-experiment/per-run customisation
├── variables/             # optional: project-specific batch criteria
│   └── my_variable.py
└── models/                # optional: analytical model implementations
    └── my_model.py

Nothing outside this directory is required. Experiment templates (the --expdef-template file) live wherever you like and are passed on the command line; they are not part of the project directory.

File and Directory Reference

.sierraplugin

Empty marker file that tells SIERRA this directory is a plugin. Required.

__init__.py

Standard Python package marker. Required.

cmdline.py

Defines the --controller and --scenario arguments for this project, and any other project-specific command-line options. Required for all projects. See Extending the SIERRA Cmdline For Your Plugin.

config/main.yaml

Core SIERRA configuration: the run_metrics_leaf key (the subdirectory within each run's working directory where output files appear), optional library name for ARGoS, and the path to a performance configuration file. Required. See Project YAML Configuration.

config/controllers.yaml

Declares which controllers the project defines, what template changes each one makes, and which graph categories apply to each. Required when running stages 3–5. See config/controllers.yaml.

config/graphs.yaml

Declares what graphs to generate in stage 4 (intra-exp and inter-exp sections) and what to imagize (imagize section). Optional, but without it stage 4 produces nothing. See Graph Generation.

config/collate.yaml

Declares which output files and columns to collate across runs within each experiment. Used by Intra-Experiment Data Collation. Optional.

config/models.yaml

Declares which analytical models to run in stage 3 and what their targets are. Used by Model Runner. Optional.

generators/scenario.py

Parses the --scenario string and produces the template modifications needed to configure each experimental run's context. Required. See Generator Configuration.

generators/experiment.py

Extends per-experiment and per-run configuration beyond what the scenario generator provides. Optional. See Generator Configuration.

variables/

Project-specific batch criteria and other variable definitions. Files here are importable as <project>.variables.<name> and can be passed directly to --batch-criteria. Optional. See Create A New Batch Criteria.

models/

Analytical model implementations. Must contain a .sierraplugin marker and an __init__.py exporting a sierra_models() function. Optional. See Model Runner.

Experiment Templates

The --expdef-template file is not inside the project directory. It is a standalone configuration file (XML, JSON, YAML, or a ROS launch file) that SIERRA modifies in stage 1 to produce per-experiment inputs. Keep it wherever is convenient for your workflow — typically alongside other experiment assets in a separate exp/ directory:

myrepo/
├── exp/
│   └── template.xml       # passed as --expdef-template
└── projects/
    └── myproject/         # on SIERRA_PLUGIN_PATH

See Experiment Templates for what the template must contain and how SIERRA modifies it.

Where Outputs Go

SIERRA writes nothing into the project directory. All outputs — generated experiment inputs, raw run outputs, statistics, graphs — go under --sierra-root, organized by project, controller, scenario, and batch criteria. See Runtime Directory Tree for the full output directory structure.

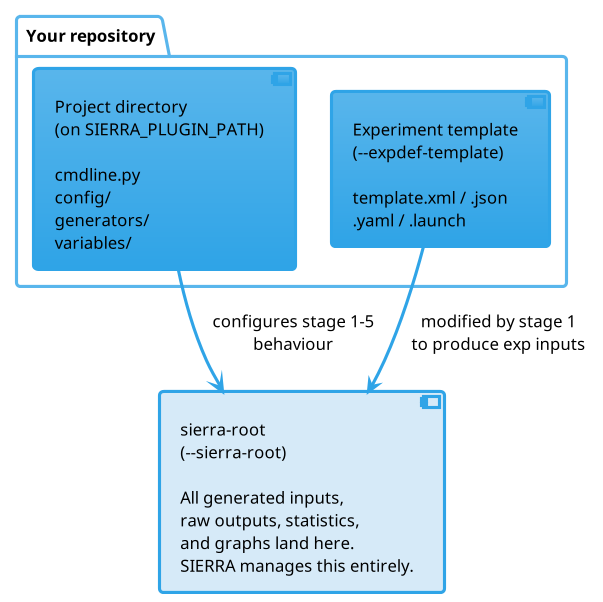

The three separate filesystem locations SIERRA works with. The project directory and template are user-managed inputs; sierra-root is entirely SIERRA-managed output.
