Imagizing

SIERRA's capabilities for imagizing (translating from Raw Output Data files into images) are detailed in this section. Imagize inputs are treated as snapshots of data over time, and after being be turned into image files in stage 3 they can be rendered into videos in stage 4 (see Rendering).

Requirements

If Projects or Engines generate files within the main.run_metrics_leaf (see Project YAML Configuration) directory for each experimental run which meet the following criteria, then SIERRA can turn them into images and render them:

• The files reside in a subdirectory of main.run_metrics_leaf.

• The files have a common stem with a unique numeric ID.

• The stem of all files in the subdir of main.run_metrics_leaf is the same as the subdir name. For example, if the directory name was foobar/swarm-distribution under main.run_metrics_leaf then all files within that directory must be named according to foobar/swarm-distribution/swarm-distributionXXXXX.<ext>, where XXXXX is any length numeric prefix (possibly preceded by an underscore or dash). <ext> is any extension supported by the currently selected storage plugin.

• The name of the subdir of main.run_metrics_leaf has a corresponding entry in graphs.yaml. This is to enable selective imagizing of graphs, so that you don't get bogged down if you want to capture imagizing data en masse, but only render some of it to videos later. See Graph Generation for details.

SIERRA can render data into either:

• Heatmaps

• Network graphs

Important

Generating the images for each experiment does not happen automatically as part of stage 3 because it can take a LONG time and is idempotent. You should only pass --proc proc.imagize the first time you run stage 3 after running stage 2.

Ordering Considerations

Invokes proc.statistics internally unless --imagize-no-stats is passed. Placing it after an explicit proc.statistics in the chain without that flag runs statistics twice.

Usage

This plugin can be selected by adding proc.imagize to the list passed to --proc.

This plugin creates <batchroot>/imagize when active. All images generated during stage 3 accrue under this root directory. Each experiment will get their own subdirectory in this root for their images. E.g.:

| -- <batchroot>
     |-- imagize
         |-- c1-exp0
         |-- c1-exp1
         |-- c1-exp2
         |-- c1-exp3
         ...

This plugin currently supports two different types of imagizing:

• Imagizing from statistics data -> sierra.core.graphs.heatmap() at the level of Experiments from using a storage plugin which outputs pd.DataFrame objects. In this form, 1 graph is generated from e.g. each averaged data frame.

• Imagizing from GraphML data -> sierra.core.graphs.network() at the level of Experimental Runs from using a storage plugin which outputs nx.Graph objects. In this form 1 graph is generated for each .grapml file output from each experimental run, which can be a lot!

Cmdline Interface

sierra - CLI interface

sierra [--imagize-no-stats]

sierra Stage 3 options

Options for processing experiment results

• --imagize-no-stats -

  If the proc.imagize plugin is run, don't run statistics generation/assume it has already been run. This can save TONS of time for:

  • Large imagizing workloads

  • Workloads where the memory limitations of the SIERRA host machine are such that you need to specify different levels of --processing-parallelism for statistics calculations/imagizing to avoid filling up memory.

  • Workloads where you don``'t want stats/stats don'``t make sense.

Examples

Source file	Image	Description

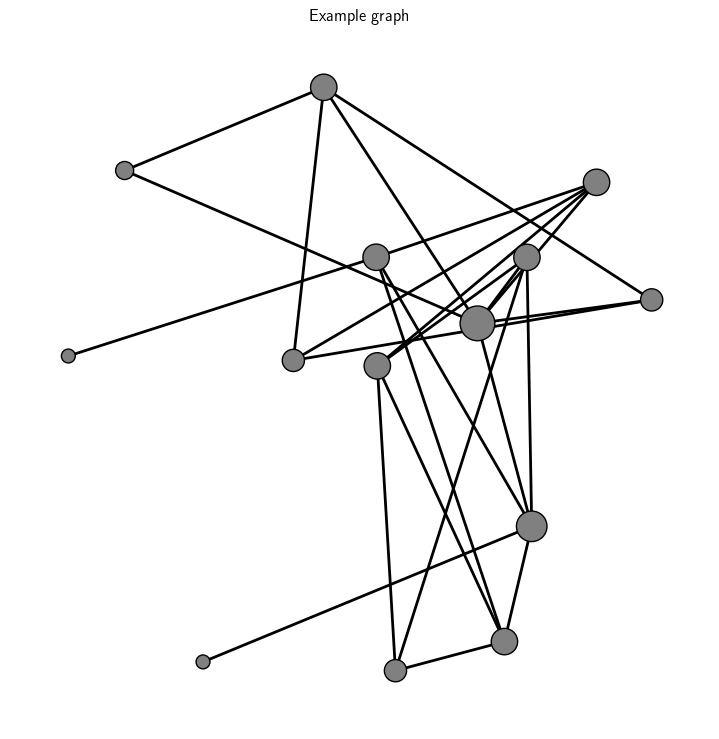

Source		Generated GraphML from the YAMLSIM sample project.

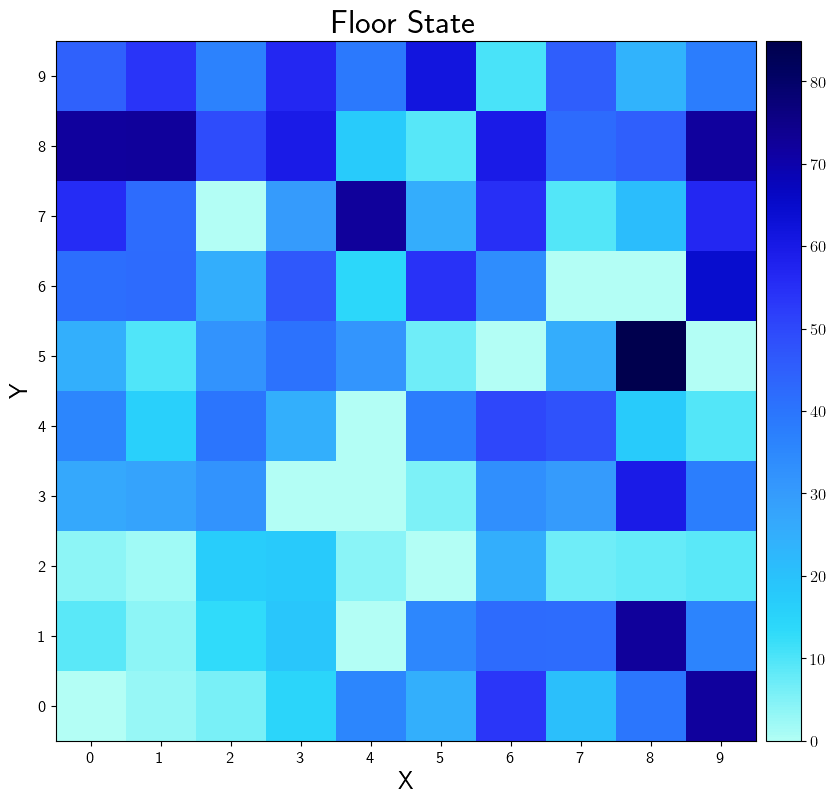

Source		Captured .csv file representing the state of the arena floor, cell-by-cell, in the ARGoS sample project.
